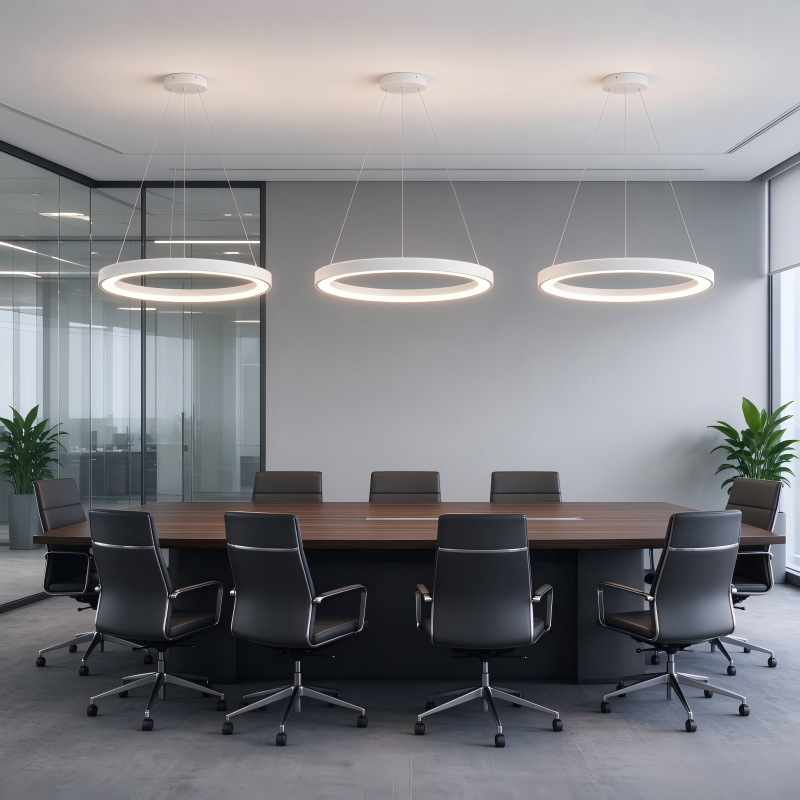

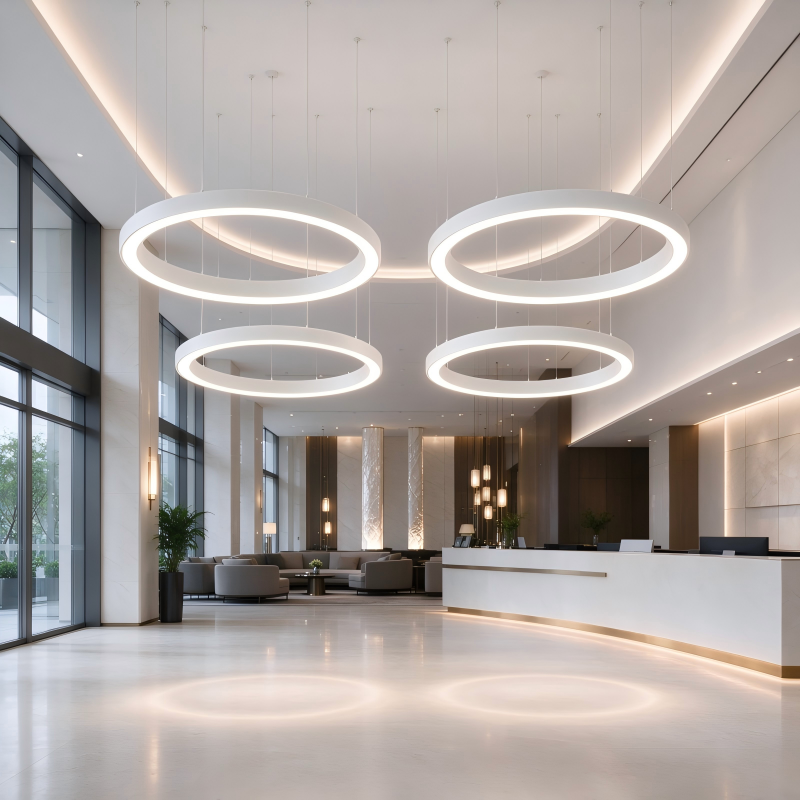

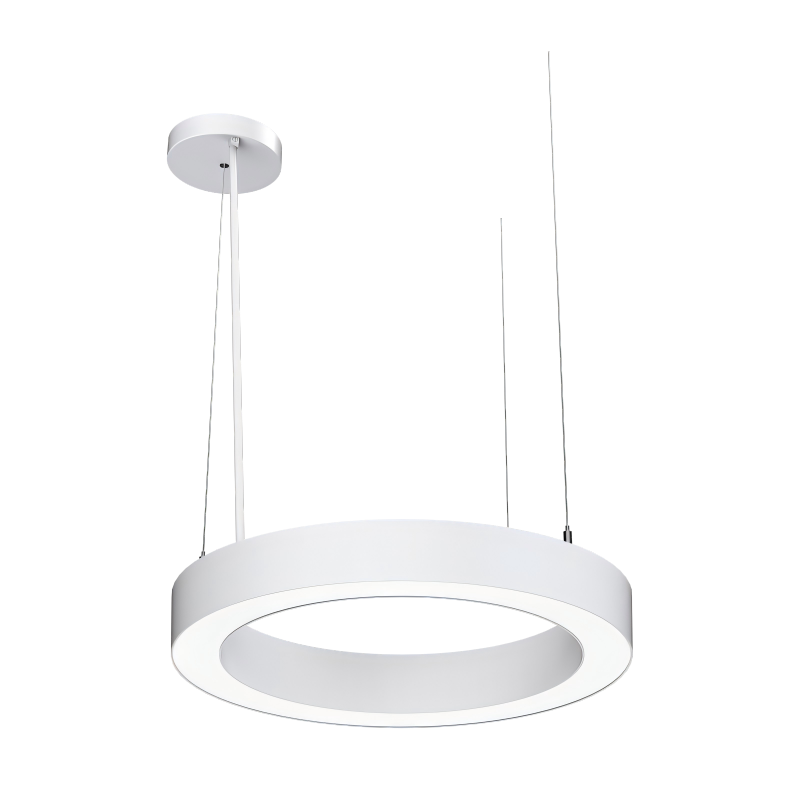

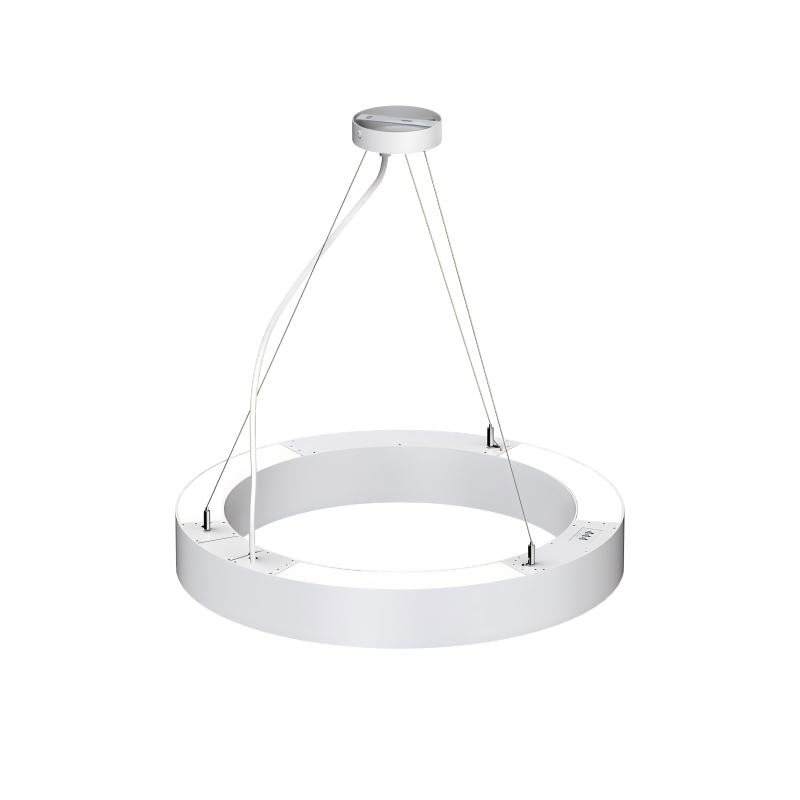

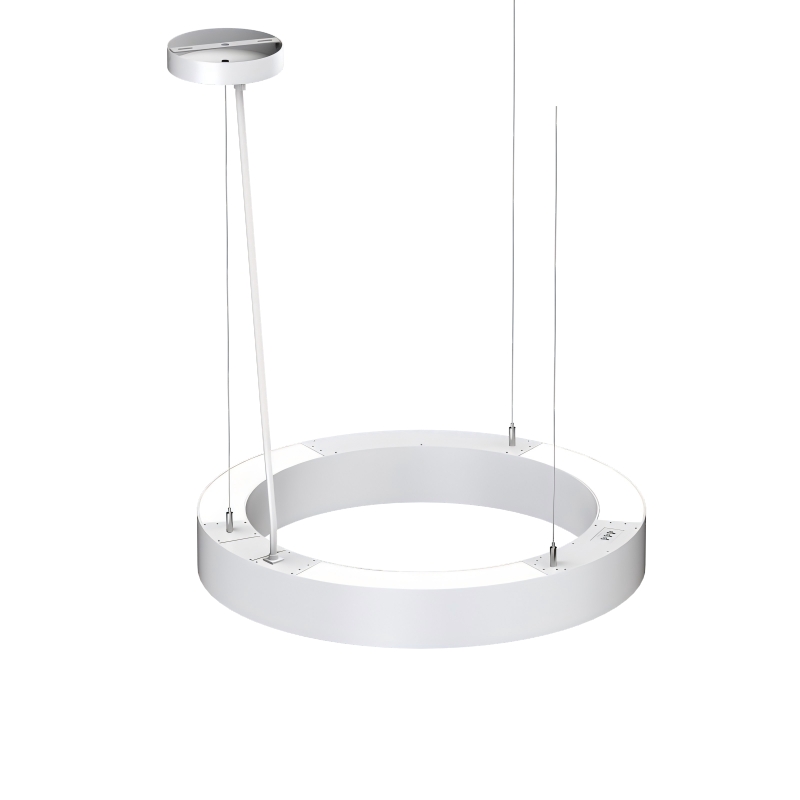

GEN 26 RING 256 is an architectural hollow-ring luminaire available in 18″ to 72″ diameters for single or nested multi-ring layouts. A frosted PC diffuser and selectable 5-step wattage with 3-CCT (3000/3500/4000K) provide layered direct and indirect light, while five up/down ratios tune ambient glow. Pendant cable suspension and a slim 82 mm aluminum profile at 115 lm/W suit lobbies, showrooms, and conference spaces.
| Model No. | Size | Wattage Select | Output Lumen | Nominal Efficacy | CCT Select | Up&Down Proportion | Input Voltage | Dimming | CRI |
| WL-26LSUD18IN35WGD1HV(XXK-XXK-XXK)-YY-SP | 18″ (Ø450×W65×H82mm) | 12/18/22/28/35W | 1380-4025 lm | 115 lm/W | 3-CCT Select: 3000K/3500K/4000K | 5-Proportion Select: 70/30, 50/50, 30/70, 10/90, 0/100 | AC120-347V | 0-10V (1%-100%) | >80 |
| WL-26LSUD24IN60WGD1HV(XXK-XXK-XXK)-YY-SP | 24″ (Ø600×W65×H82mm) | 20/30/40/50/60W | 2300-6900 lm | ||||||
| WL-26LSUD36IN90WGD1HV(XXK-XXK-XXK)-YY-SP | 36″ (Ø900×W65×H82mm) | 30/45/60/75/90W | 3450-10350 lm | ||||||
| WL-26LSUD48IN120WGD1HV(XXK-XXK-XXK)-YY-SP | 48″ (Ø1200×W65×H82mm) | 40/60/80/100/120W | 4600-13800 lm | ||||||
| WL-26LSUD60IN150WGD1HV(XXK-XXK-XXK)-YY-SP | 60″ (Ø1500×W65×H82mm) | 50/75/100/125/150W | 5750-17250 lm | ||||||
| WL-26LSUD72IN180WGD1HV(XXK-XXK-XXK)-YY-SP | 72″ (Ø1800×W65×H82mm) | 60/90/120/150/180W | 6900-20700 lm |
