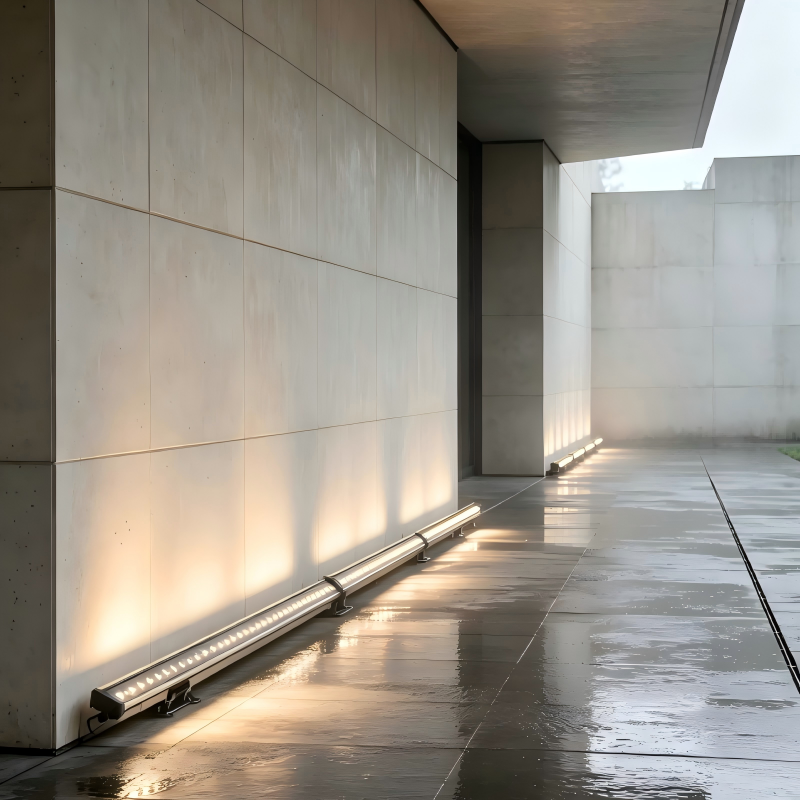

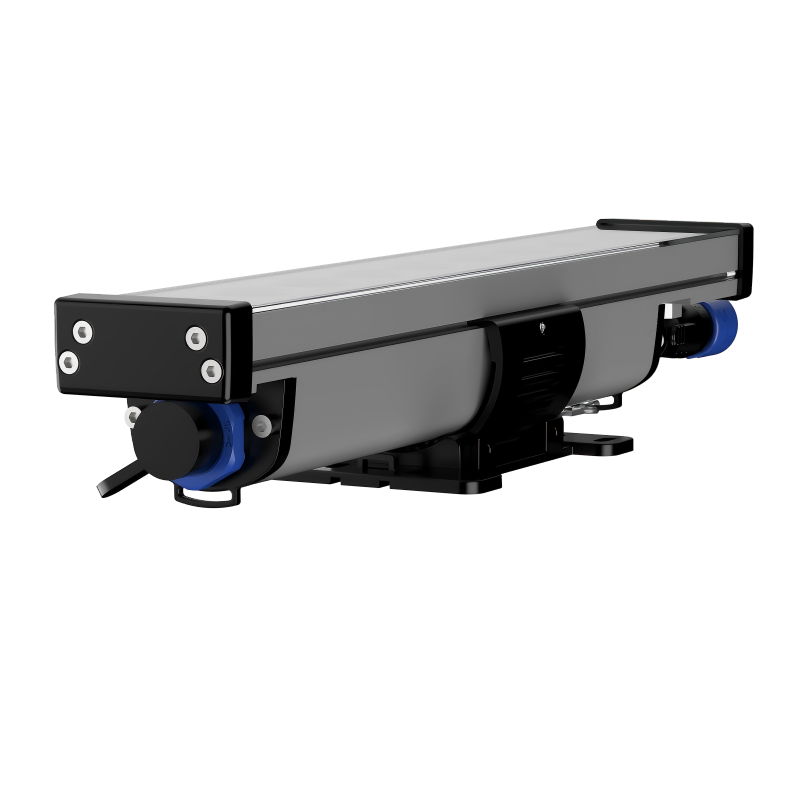

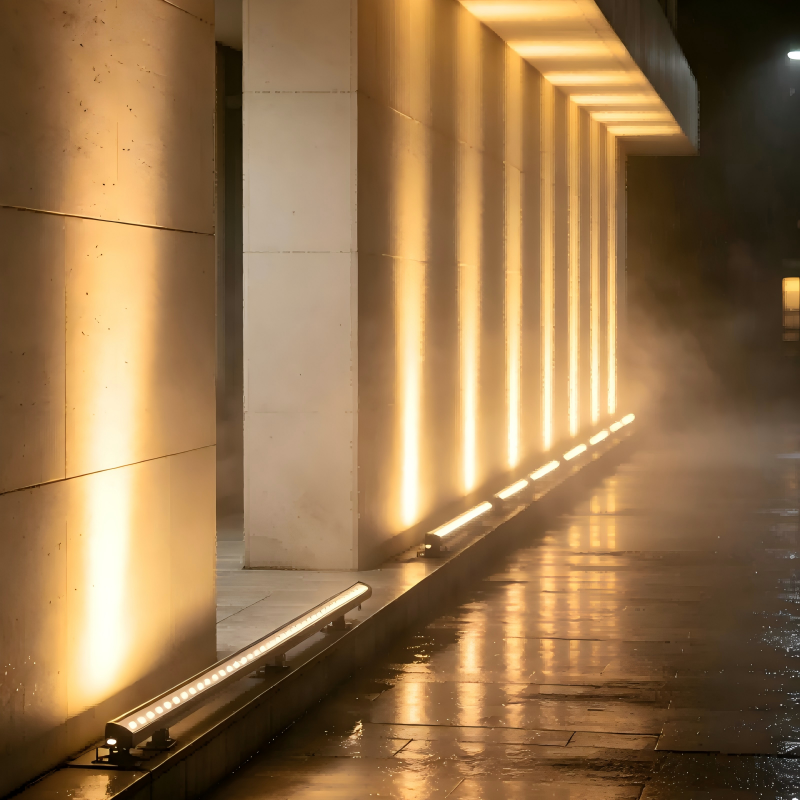

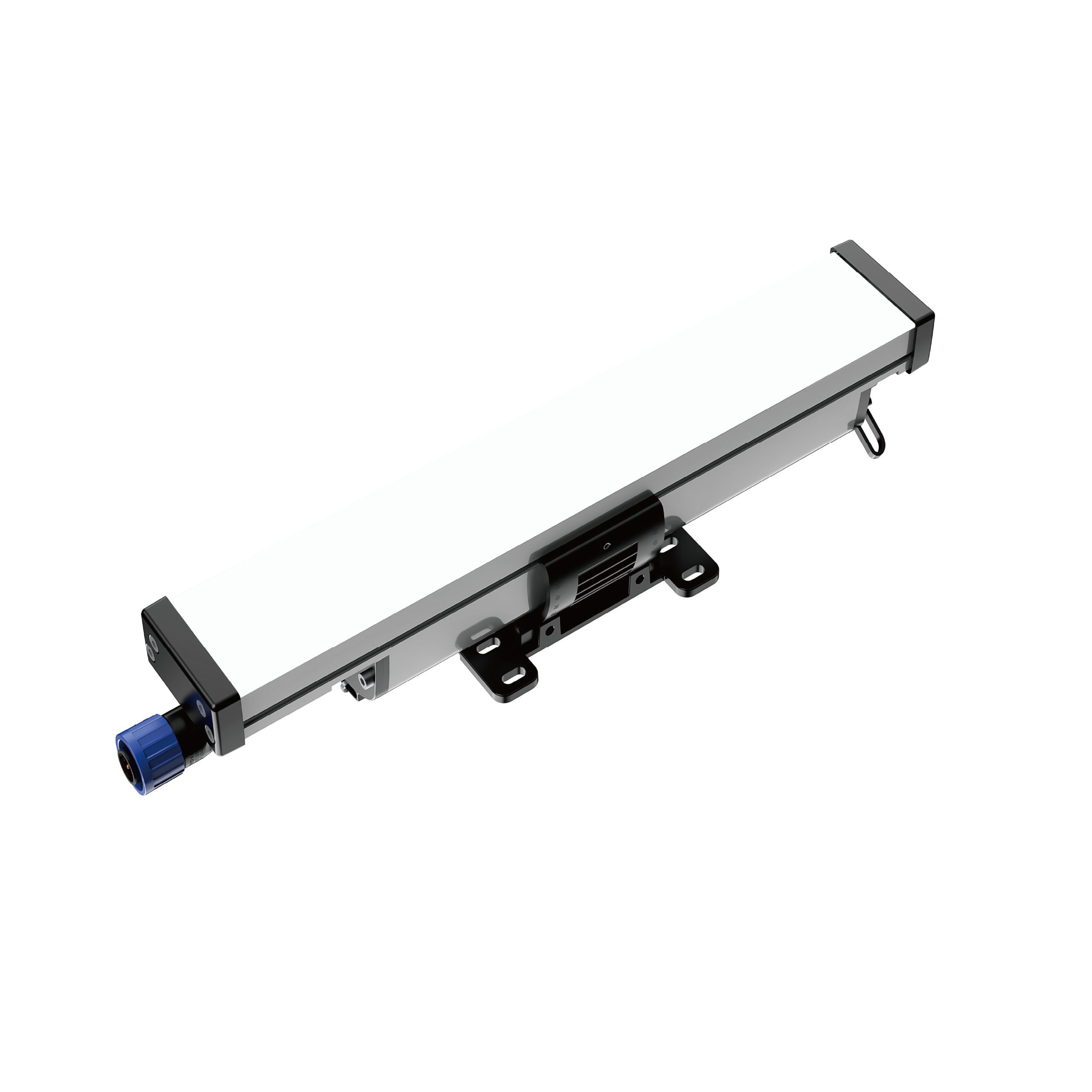

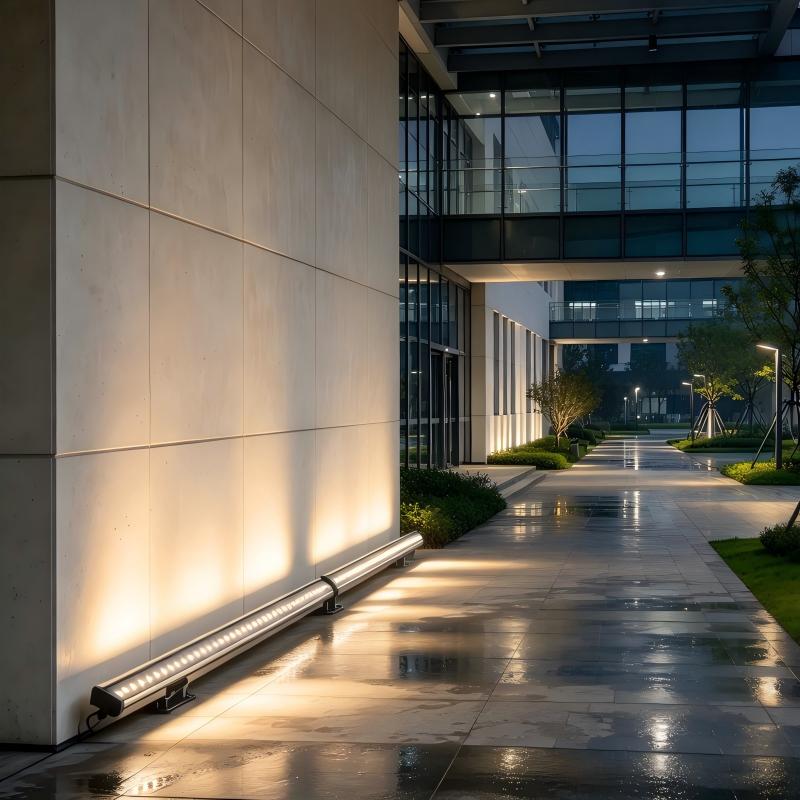

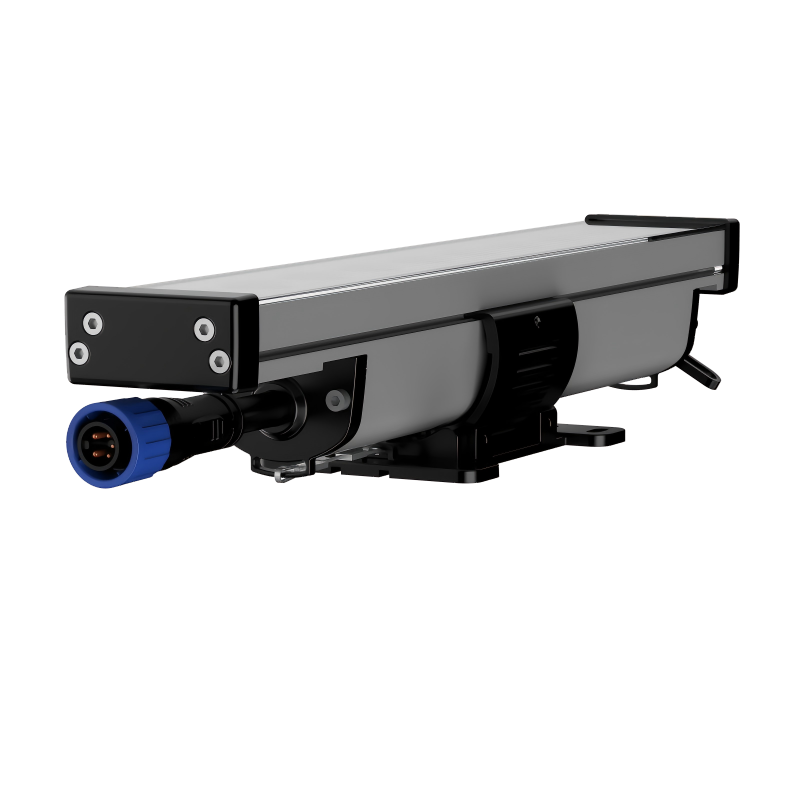

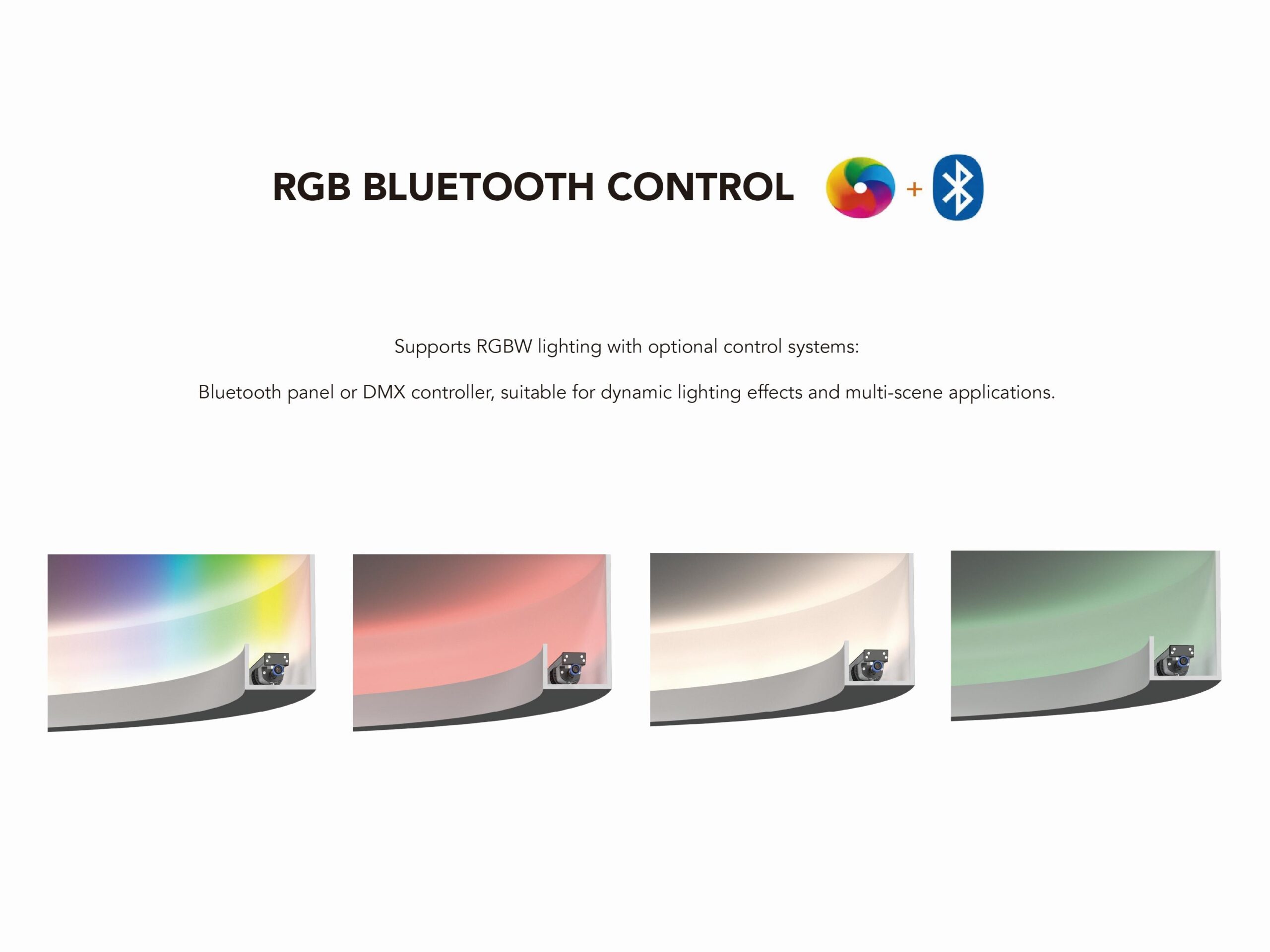

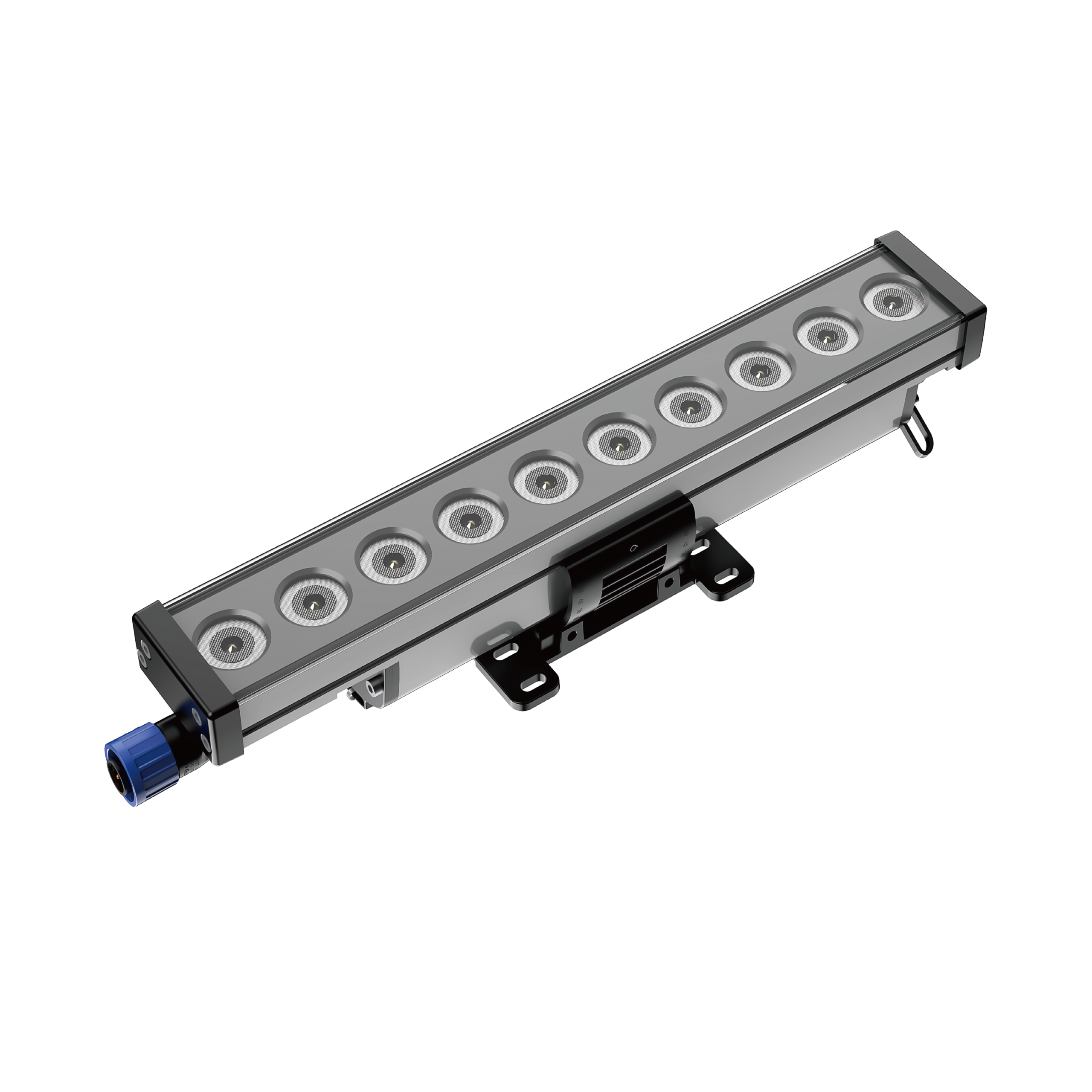

CLEAVER G3 is an IP65 exterior cove light for surface mounting, available in 1FT and 4FT lengths in static white and RGBW variants. A co-extruded PC diffuser and anodized aluminum housing withstand harsh outdoor environments, while twelve precision optical layouts — from 7×7° narrow beam to Asymmetric 25° — cover wall washing, grazing, and accent applications. White versions dim via 0-10V (1%-100%) with optional DALI, TRIAC, and Dim-to-Warm, and RGBW models are controlled by DMX512 with Bluetooth mesh options.

Model No.SizeWattage SelectOutput LumenNominal
Efficacy		CCT
Select		Beam
Angle		Input
Voltage		DimmingCRI
WL-3COV1FT10WAD1UV-90-
110(XXK)-A		1FT
(L12.2″XH2.1″XW2.7″)		10W800-900lm80-90lm/W2700K/
3000K/
3500K/
4000K/
5000K
Single CCT		110° PC
Clear Diffuser		AC120-277V0-10V
(1-100%)		>90
WL-3COV4FT40WAD1UV-90-
110(XXK)-A		4FT
(L47″XH2.1″XW2.7″)		40W3200-3600lm
WL-3COV1FT10WAD1UV-90-
110(XXK)-B		1FT
(L12.2″XH2.1″XW2.7″)		10W800-900lm
WL-3COV4FT40WAD1UV-90-
110(XXK)-B		4FT
(L47″XH2.1″XW2.7″)		40W3200-3600lm
WL-3COV1FT10WAD1UV-90-
XXXX(XXK)-C		1FT
(L12.2″XH2.1″XW2.7″)		10W650-800lm65-80lm/W2700K/
3000K

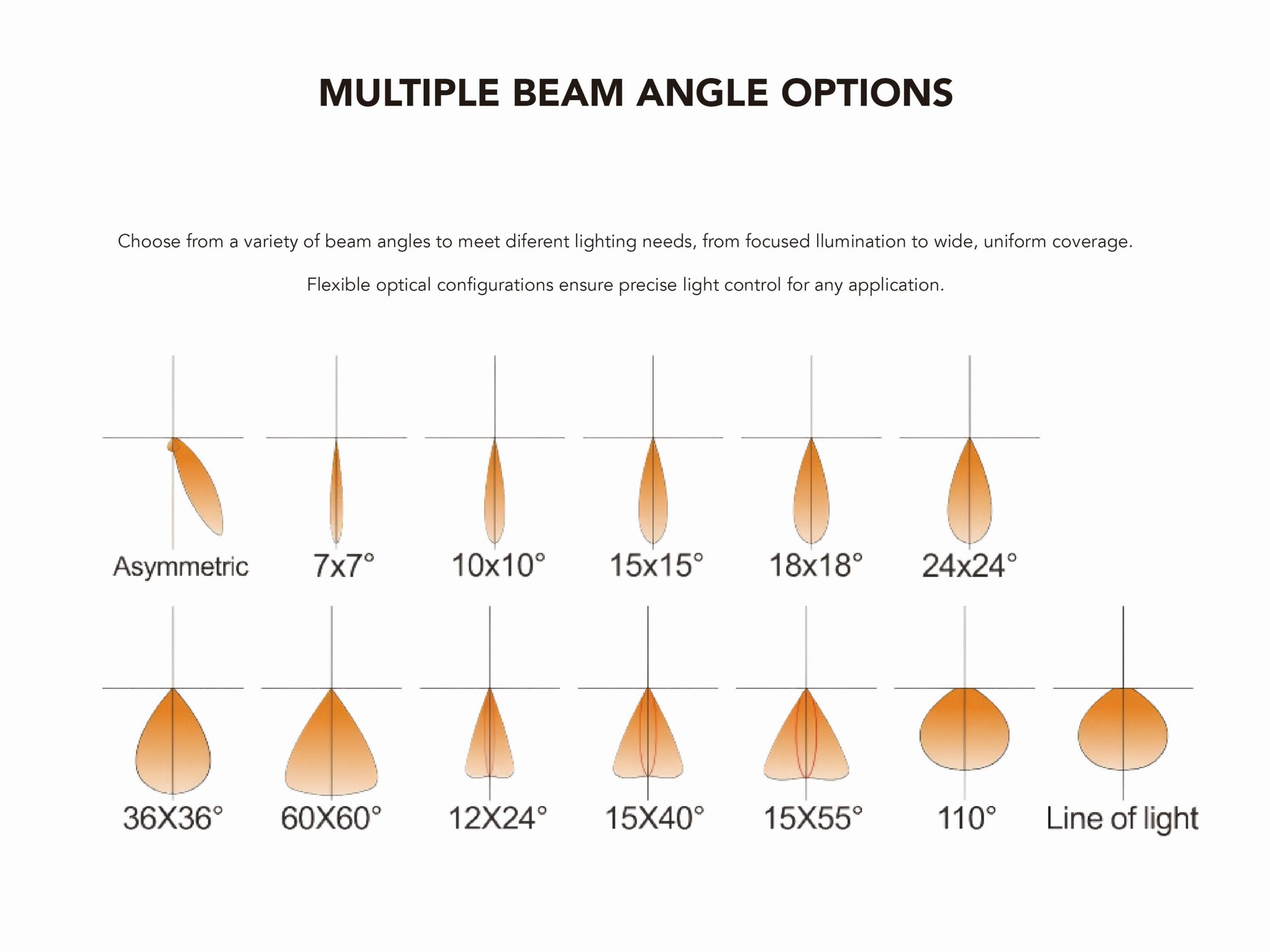

Single CCT		7×7°,10×10°,
15×15°,18×18°,
24×24°,36×36°,
60×60°,12×24°,
15×40°,15×55°,
Asymmetric 25°
Optic		>90
WL-3COV4FT40WAD1UV-90-
XXXX(XXK)-C		4FT
(L47″XH2.1″XW2.7″)		40W2600-3200lm
WL-3COV1FT10WAD1UV-80-
XXXX(XXK)-C		1FT
(L12.2″XH2.1″XW2.7″)		10W800-1000lm80-100lm/W2700K/
3000K/
3500K/
4000K/
5000K
Single CCT		>80
WL-3COV4FT40WAD1UV-80-
XXXX(XXK)-C		4FT
(L47″XH2.1″XW2.7″)		40W3200-4000lm
WL-3COV1FT10WAD1UV-90-
XXXX(XXK)-L		1FT
(L12.2″XH2.1″XW2.7″)		10W650-800lm65-80lm/W2700K/
3000K
Single CCT		>90
WL-3COV4FT40WAD1UV-90-
XXXX(XXK)-L		4FT
(L47″XH2.1″XW2.7″)		40W2600-3200lm
WL-3COV1FT10WAD1UV-80-
XXXX(XXK)-L		1FT
(L12.2″XH2.1″XW2.7″)		10W800-1000lm80-100lm/W2700K/
3000K/
3500K/
4000K/
5000K
Single CCT		>80
WL-3COV4FT40WAD1UV-80-
XXXX(XXK)-L		4FT
(L47″XH2.1″XW2.7″)		40W3200-4000lm
WL-3COV1FT10WMDC-90-
XXXX(RGBW)-L		1FT
(L12.2″XH2.1″XW2.7″)		10WMix:430lm;
Red:68lm;
Green:260lm;
Blue:202lm;
White:115lm		Mix:43lm/W;
Red:27lm/W;
Green:80lm/W;
Blue:21lm/W;
White:46lm/W		RGBW [Red:610-620nm
Green:520-535nm
Blue:450-475nm
White:27K-90K]		15°x15°,24°x24°,
36°x36°,60°x60°,
15×40°,15×55° Optic		DC24VDMX512Ra>90(W)
WL-3COV4FT40WMUDC-90-
XXXX(RGBW)-L		4FT
(L47″XH2.1″XW2.7″)		40WMix:1720lm;
Red:1080lm;
Green:3200lm;
Blue:840lm;
White:1840lm
WL-3COV1FT10WMUV-90-
XXXX(RGBW)-L		1FT
(L12.2″XH2.1″XW2.7″)		10WMix:430lm;
Red:68lm;
Green:260lm;
Blue:202lm;
White:115lm		AC120-277V
WL-3COV4FT40WMUUV-90-
XXXX(RGBW)-L		4FT
(L47″XH2.1″XW2.7″)		40WMix:1720lm;
Red:1080lm;
Green:3200lm;
Blue:840lm;
White:1840lm
